Cantilever racks are a vital component in various industries, offering efficient storage solutions for long and bulky items. From construction materials to furniture and lumber, cantilever racks provide a space-saving and organized way to store and access these items. In this blog, we’ll delve into the intricacies of cantilever racks, exploring their design, benefits, applications, and key considerations for implementation.

What Are Cantilever Racks?

Cantilever racks are specialized storage systems designed to store long, bulky, or irregularly shaped items that may not fit well on traditional shelving or pallet racks. They feature horizontal load-bearing arms that extend outward from vertical columns, creating an open-front design that allows for easy loading and unloading of items. The absence of front columns in the rack’s design enables forklifts or other handling equipment to access the stored materials without obstructions.

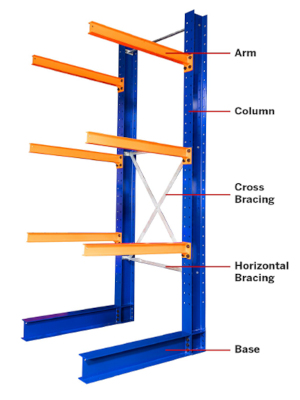

Key Components of Cantilever Racks

  1. Vertical Columns: These are the upright supports that provide structural stability to the rack system. They are typically made of heavy-duty steel and are anchored to the floor for maximum strength.
  2. Horizontal Load-Bearing Arms: These arms extend outward from the vertical columns and support the weight of the stored items. They come in various lengths and can be adjusted or removed to accommodate different load sizes.
  3. Base and Bracing: The base of the cantilever rack provides stability and support, while bracing elements (diagonal or horizontal braces) enhance the rack’s overall rigidity, especially in taller configurations.

Benefits of Cantilever Racks

  1. Optimized Storage: Cantilever racks are ideal for storing long and bulky items such as steel bars, pipes, lumber, and furniture. Their open design allows for easy access and retrieval of materials.
  2. Space Efficiency: Compared to traditional shelving systems, cantilever racks maximize vertical space utilization without sacrificing accessibility. This makes them suitable for warehouses and facilities with limited floor space.
  3. Flexibility: Cantilever racks are highly customizable, with adjustable arms and configurations to accommodate varying load sizes and types. They can be configured as single-sided or double-sided units based on storage needs.
  4. Improved Accessibility: The open-front design of cantilever racks enables quick visual identification of stored items and facilitates easy loading and unloading using forklifts or other handling equipment.
  5. Durability: Constructed from heavy-duty materials such as steel, cantilever racks are built to withstand the weight of heavy loads and provide long-term reliability in demanding environments.

Applications of Cantilever Racks

Cantilever racks find wide-ranging applications across industries, including:

  1. Building and Construction: Storing and organizing lumber, pipes, steel bars, and construction materials.
  2. Retail and Warehousing: Managing long and bulky retail items such as furniture, carpet rolls, and appliances.
  3. Manufacturing: Storing raw materials, metal sheets, and components in an organized manner for efficient production processes.
  4. Automotive: Storing automotive parts, tires, and long vehicle components in a space-efficient manner.
  5. Industrial Facilities: Organizing heavy-duty equipment, tools, and machinery for easy access and inventory management.

Considerations for Implementing Cantilever Racks

When considering the implementation of cantilever racks in a facility, several factors should be taken into account:

  1. Load Capacity: Ensure the cantilever racks are rated for the weight and dimensions of the items being stored.
  2. Space Layout: Plan the layout of the racks to optimize space utilization and ensure smooth material flow.
  3. Safety Measures: Install appropriate safety features such as load stoppers, column protectors, and aisle markings to prevent accidents and injuries.
  4. Regular Maintenance: Conduct routine inspections and maintenance of cantilever racks to ensure structural integrity and safe operation.
  5. Compliance: Adhere to industry standards and regulations regarding rack design, load capacity, and safety guidelines.

Cantilever racks offer a versatile and efficient storage solution for long, bulky, and irregularly shaped items across various industries. Their space-saving design, accessibility, and durability make them indispensable in warehouses, manufacturing facilities, retail outlets, and more. By understanding the key components, benefits, applications, and implementation considerations of cantilever racks, businesses can optimize their storage capabilities and streamline material handling processes.
